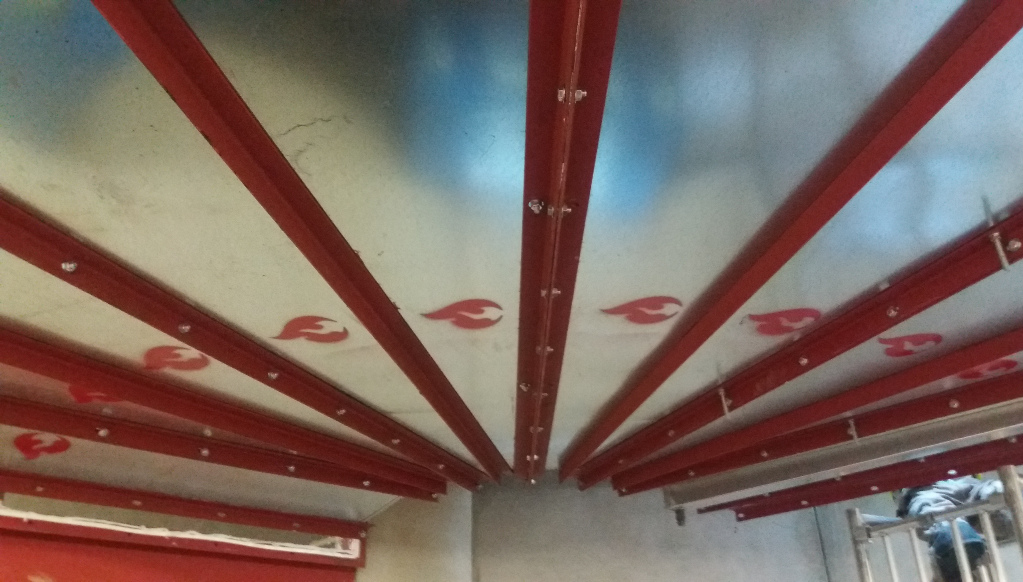

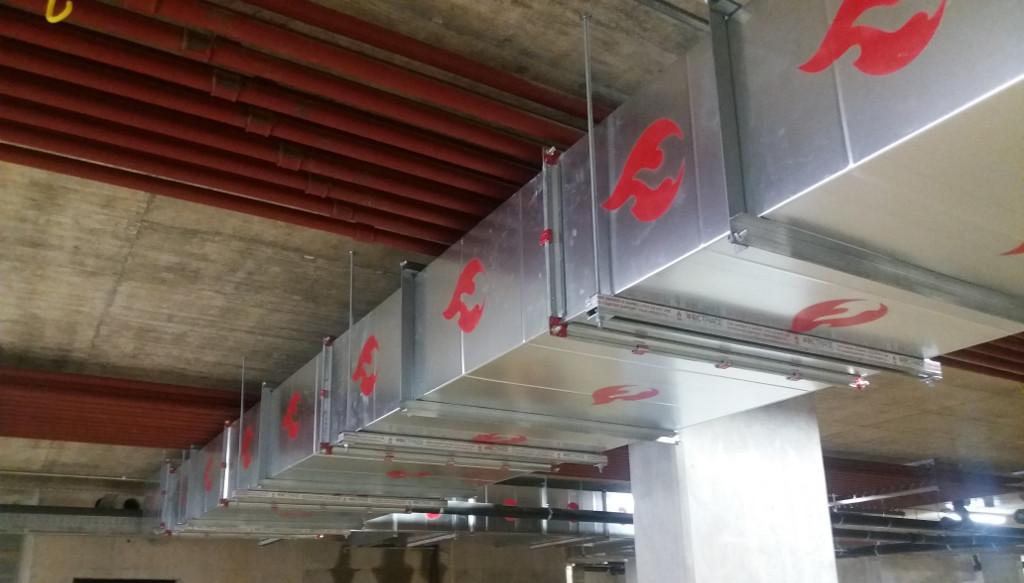

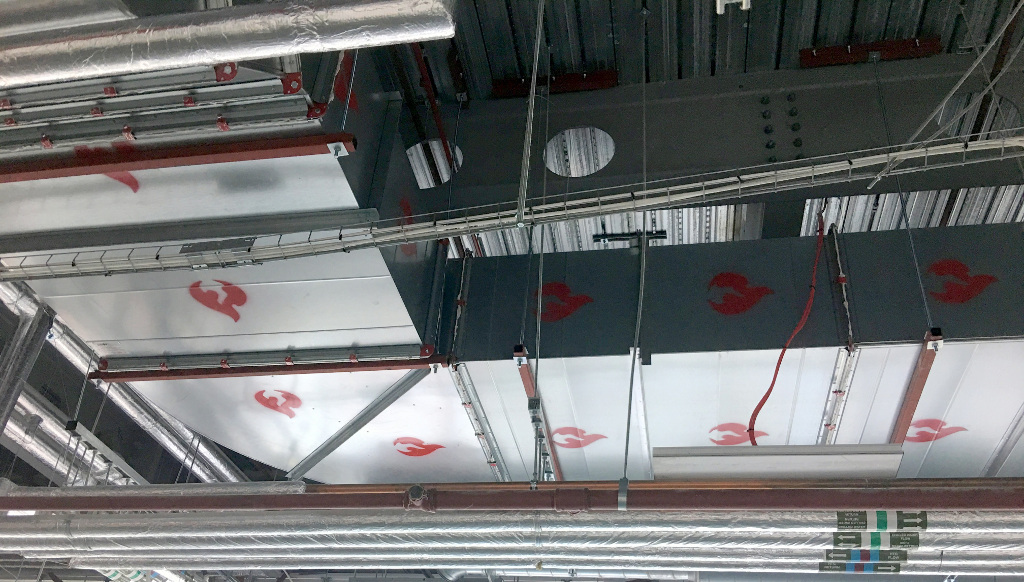

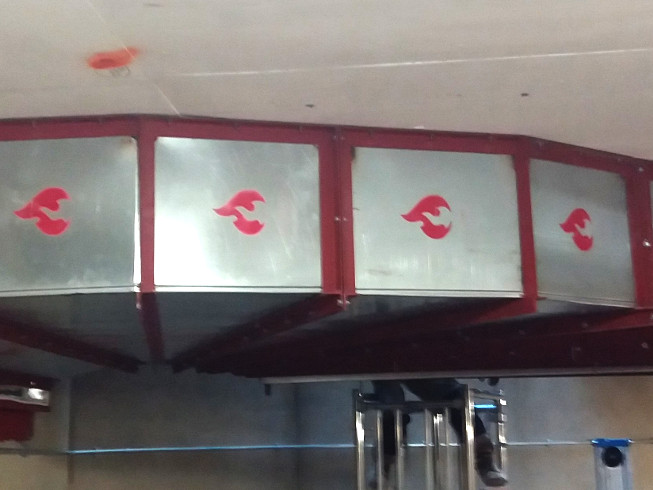

Smoke Extract and Dual Ventilation
Caswell Firesafe non coated fire rated ductwork has been assessed as suitable for Smoke Extract systems. Smoke extract systems should be tested for Type A (fire outside) and Type B (fire inside) to BS 476 –part 24 for a specified time for Stability, Integrity and Insulation (if required)
Dual smoke extract combined with; supply or /and extract systems can operate in two different modes to provide a solution for ventilation and smoke extraction. In the daily operational mode the ductwork system can be either supply or extract and when under fire conditions operate as a smoke extract system. This can be a particularly economic solution to smoke extract.
Smoke extract ductwork is required to retain 75 % of its cross sectional area within the fire compartment and neighbouring compartment, this is tested under BS 476 –part 24
Where a smoke extract duct crosses an escape corridor, it must maintain its stability, integrity and insulation fire rating for the same period of time as the compartment through which it passes.
Insulation requirements may be waived or varied by the regulatory authority if there are no combustible materials within 500mm of the duct, such as in a riser or a plant room, (BS 9999:2008 Clause W.4). Air Extraction must be maintained and Fire Dampers must not be used.
|System Description||Material||Stability & Integrity||Insulation|
|Smoke Extract||Galvanised Mild Steel||Up to 4 Hours||Up to 2 Hours*|
*Insulation values are obtained through the application of specific insulation
European Standards (Smoke Extract)
A set of harmonised European Standards have been published for Smoke Control Ducts, however, it is only possible to classify insulated systems under the current regime. In addition the size range that is covered for CE marking smoke control ducts is up to 1250mm wide x 1000mm high (or 1000mm diameter) as there is no EXAP (Extended Field of Application) standard published as yet. BS476-part 24 remains a suitable alternative standard for uninsulated systems, and for systems which fall outside the above scope subject to the approval of the local authority.
Trusted by the industry
Our professional approach and continual investment in the training of our staff, technology systems and manufacturing plant ensure you receive the very best product and service. We are ISO 9001:2015 compliant and Investors in People accredited to 2020. Manufacturing to the highest quality control standards. With our internal factory production control (FPC) being maintained by our own skilled and experienced sheet metal fabricators, which is regularly audited by BRE Global and Applus Laboratories.
Considerate to the environment
Non-Coated galvanised fire rated ductwork has significant commercial and environmental savings over systems using intumescent or flame-retardant coatings that require energy and chemicals to degrease, etch, prime, paint and dry. Our systems also alleviate the inherent problems of damaging these coatings during logistics, assembly and installation, which compromises the fire resistance of a secondary coated system.

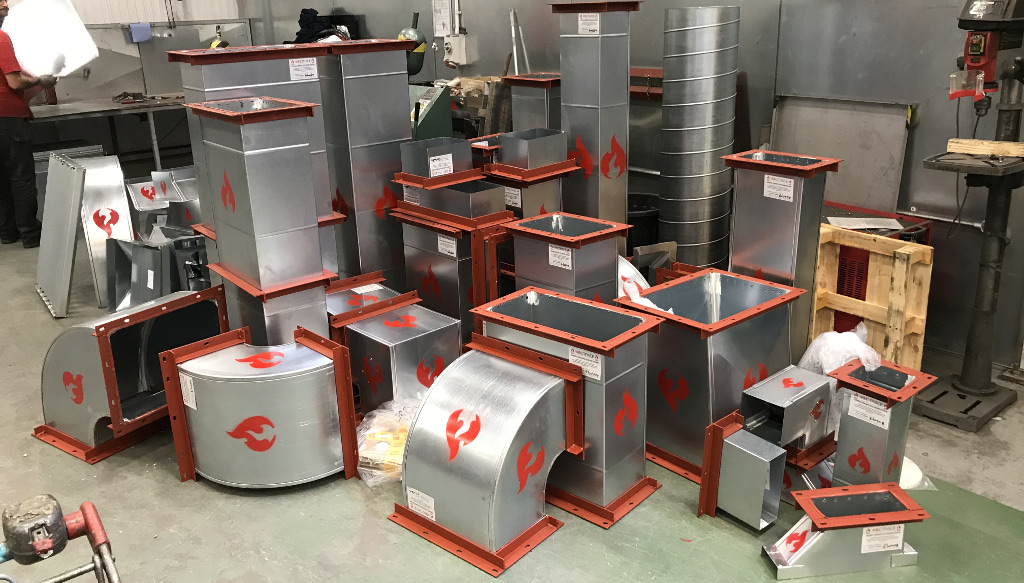

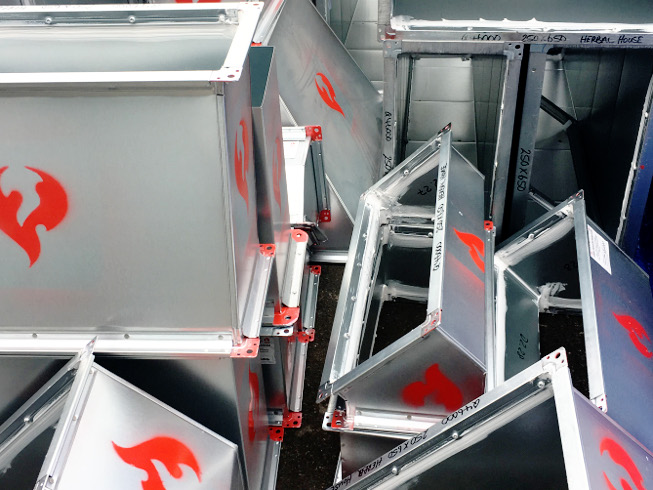

Supply Only Non Coated Fire Rated Ductwork:
- Rectangular duct up to 3000mm square
- Circular duct up to 1250mm diameter
- Special construction duct up to 8m longest side
- Horizontal and vertical orientations
- Available in Galvanised, Mild & Stainless Steel
- Conventional or Fully Welded construction
- Tested for ‘Fire Outside’ & ‘Fire Inside’ scenarios

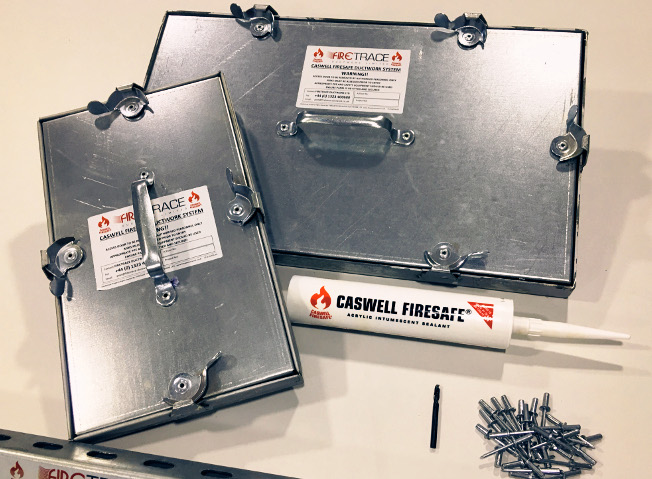

- Fire rated Access Doors
- Fire rated Silencers
- Bespoke design for ductwork support systems
All fire rated ducting is manufactured to the CASWELL FIRESAFE® specification. Email us now to obtain a quote for your requirements.
The system was developed and tested in the early 2000’s in accordance with BS476 Part 24 (1987). In recent years further, development and testing in accordance with EN1366 Part 1 (2013) to meet European legalisation including CE marking.
The product is tested to BS 476-24 (1987) and EN 1366-1 (2013) for up to 4 hours stability and integrity and up to 4 hours insulation (fire outside duct) and 2 hours insulation* (fire inside duct).
* Insulation values are obtained through the application of specific insulation (refer to Firetrace Ductwork ltd for required material specifications)
Email us now to obtain a quote for your requirements.
